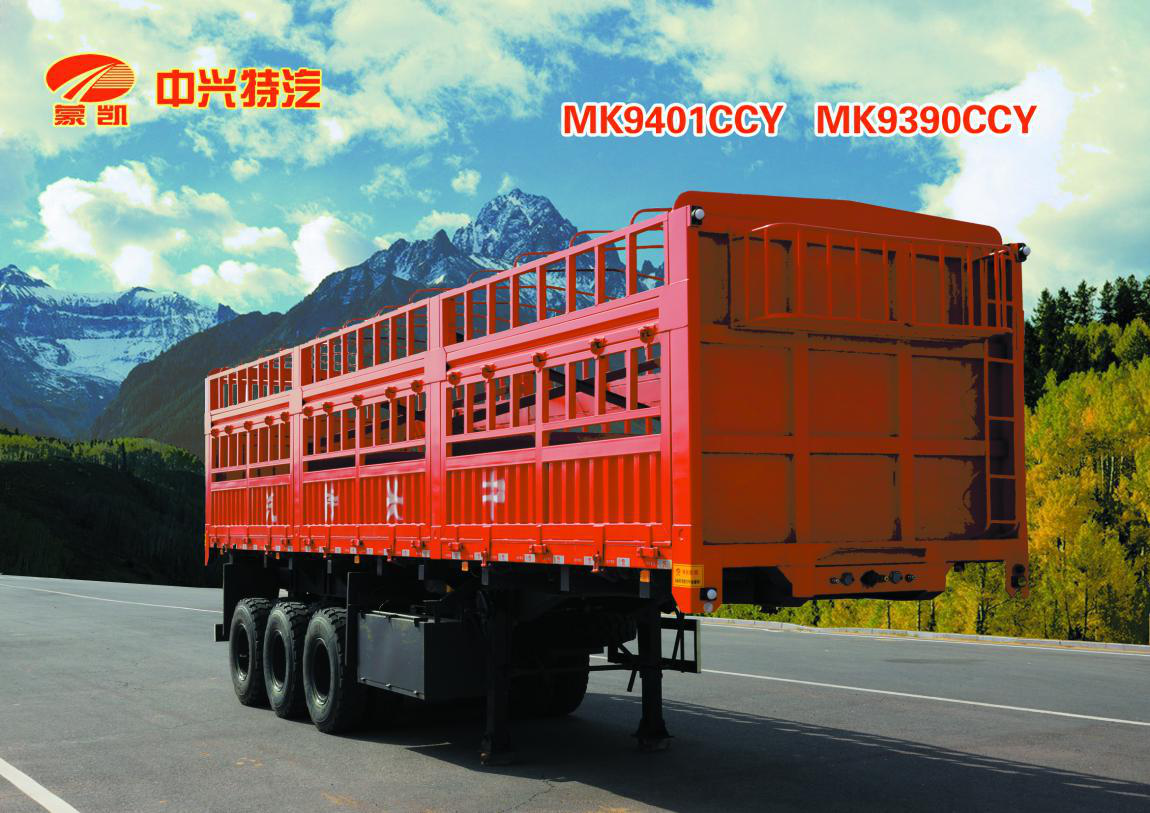

中興特汽從車輛運煤灑煤污染、限制超載、卸煤困難等方面入手，研究設計的蒙凱專利產品——活動底板倉欄半掛車，該專利卸貨效率是人工卸貨的10-30倍，是傳統自卸車效率的2倍。
Zhong Xing Special Vehicle Manufacturing Co., Ltd starts on the pollution caused by the transportation and scattering of coal, controlling the overload and the difficulties of unloading the coal, as well as R&D Mengkai Patented Products-semi-trailer with movable base floor and box/stake semi-trailer, of which the unloading efficiency of this patent is 10-30 times as high as the efficiency of manual unloading and 2 times as high as the efficiency of traditional dumper.
整車車身采用優質鋼材，先進的技術，嚴格的生產工藝制造而成，整車的結構合理，性能可靠，操作簡便。配件均采用國外知名廠家產品，且嚴格按照質量體系文件要求采購、檢驗、使用，保證了整車的良好性能。創新服務理念：全心全意24小時不間斷服務，我們堅信技術產生信任，只有專業，才能卓越。
The whole trailer is manufactured by premium steel, advanced technologies and strict manufacturing techniques. The trailer possesses reasonable structure, reliable performance and easy operation. All of its accessories come from products of famous manufacturers both at home and abroad and are purchased, tested and operated according to the strict quality documents to ensure the good performance of the whole trailer. We have innovative service ideas and provide 24/7 service. We sincerely believe that trust comes from technology and professionalism results in excellence.
序號 | 車輛名稱Vehicle name | 倉柵運輸半掛車Bunker transport Semitrailer | |||||||
| 項目project | |||||||||
| 1 | 產品型號 Model | MK9401CCY，MK9400CCYZ2 | MK9400CCYZ2 | MK9400CCYZ2 | MK9390CCY，MK9400CCYZ1 | MK9390CCY，MK9400CCYZ1 | MK9390CCY，MK9400CCYZ1 | MK9400CCQ | |
| 2 | 半掛車輪胎 Tyre Size | 廠家 manufactor | 風神輪胎 | 風神輪胎 | 風神輪胎 | 風神輪胎 | 風神輪胎 | 風神輪胎 | 風神輪胎 |
| 規格model | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 11.00R20 12PR | ||
| 3 | 半掛車輪輞Rim | 廠家 | 正興輪輞 | 正興輪輞 | 正興輪輞 | 正興輪輞 | 正興輪輞 | 正興輪輞 | 正興輪輞 |
| 4 | 半掛車車橋 Axle | 廠家 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 |
| 每只橋承載重（噸）Each Axle Bearing weight （t） | 13T | 13T | 13T | 13T | 13T | 13T | 13T | ||
| 5 | 型號Model | 三軸標準懸掛Three axis standard suspension | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | |
| 6 | 半掛車板簧Plate Spring | 每片厚度thickness (mm) | 13/16 | 13/16 | 13/16 | 13/16 | 13/16 | 13/16 | 13/16 |
| 每片寬度width (mm) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| 數量（片）Number(slice) | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | ||
| 7 | 半掛車ABS系統 antilock brake system | 廠家 | 科密 | 科密 | 科密 | 科密 | 科密 | 科密 | 科密 |
| 規格model | 4S/2M | 4S/2M | 4S/2M | 4S/2M | 4S/2M | 4S/2M | 4S/2M | ||
| 8 | 半掛車牽引銷 Traction pin | 型號 model | 90#焊接式Welding type | 90#焊接式 | 90#焊接式 | 90#焊接式 | 90#焊接式 | 90#焊接式 | 90#焊接式 |
| 9 | 半掛車支腿 landing leg | 雙腿承重（噸）double leg bearing (t) | 28T | 28T | 28T | 28T | 28T | 28T | 28T |
| 10 | 半掛車工字縱梁、邊梁 I-shaped longitudinal steel beam，boundary beam | 上下翼面寬Upper and lower wings Wide (mm) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| 邊梁高度boundary beam height (mm) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | ||
| 縱梁高度 height of the stringer (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||
| 11 | 貨廂 Container | 貨廂內部尺寸cargo car body Internal size (mm) | 12860，12700*2300*600 | 12200*2300*600 | 11700*2300*600 | 11350*2300*600 | 10850*2300*600 | 10350*2300*600 | 12850*2300*600 |
| 12 | 配置 Specification | 總質量Kerb Weight(kg) | 40000 | 40000 | 40000 | 39000,40000 | 39000,40000 | 39000,40000 | 39980 |
| 整備質量Payload Capacity(kg) | 7000，8500 | 8300 | 8100 | 7100,8100 | 6800,7900 | 6500，7700 | 7980 | ||
| 軸距Wheel Base(mm) | 6680+1310+1310 6900+1310+1310 6800+1350+1350 | 6600+1310+1310 6500+1310+1310 | 6400+1310+1310 6300+1310+1310 | 5520+1310+1310 | 5320+1310+1310 5520+1310+1310 | 5220+1310+1310,5020+1310+1310 | 6360+1310+1310 | ||
| 車輛外形尺寸Vehicle Shape Size(mm) | 12950×2500×3650,3850 | 12450*2500*3650,3850 | 119500*2500*3450,3650，3850 | 11500*25003450,3650,3850 | 11000*2500*3450，3650,3850 | 10500*2500*3450，3650,3850 | 12995×2500×3520 | ||
| 序號 | Vehicle name | Bunker transport Semitrailer | ||||||
| project | ||||||||
| 1 | Model | MK9401CCY，MK9400CCYZ2 | MK9400CCYZ2 | MK9400CCYZ2 | MK9390CCY，MK9400CCYZ1 | MK9390CCY，MK9400CCYZ1 | MK9390CCY，MK9400CCYZ1 | |
| 2 | Tyre Size | Model | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 |
| 3 | Axle | manufactor | mengkai | mengkai | mengkai | mengkai | mengkai | mengkai |
| Each Axle Bearing weight （t） | 13T | 13T | 13T | 13T | 13T | 13T | ||
| model | Three axis standard suspension | Three axis standard suspension | Three axis standard suspension | Three axis standard suspension | Three axis standard suspension | Three axis standard suspension | ||
| 4 | Plate Spring | thickness (mm) | 13/16 | 13/16 | 13/16 | 13/16 | 13/16 | 13/16 |
| width (mm) | 90 | 90 | 90 | 90 | 90 | 90 | ||
| Number(slice) | 10/8 | 10/8 | 10/8 | 10/8 | 10/8 | 10/8 | ||
| 5 | antilock brake system | model | 4S/2M | 4S/2M | 4S/2M | 4S/2M | 4S/2M | 4S/2M |
| 6 | Traction pin | model | 90#Welding type | 90#Welding type | 90#Welding type | 90#Welding type | 90#Welding type | 90#Welding type |
| 7 | landing leg | double leg bearing (t) | 28T | 28T | 28T | 28T | 28T | 28T |
| 8 | I-shaped longitudinal steel beam，boundary beam | Upper and lower wings Wide (mm) | 140 | 140 | 140 | 140 | 140 | 140 |
| boundary beam height (mm) | 140 | 140 | 140 | 140 | 140 | 140 | ||
| height of the stringer (mm) | 500 | 500 | 500 | 500 | 500 | 500 | ||
| 9 | Container | （mm）cargo car body Internal size (mm) | 12860，12700*2300*600 | 12200*2300*600 | 11700*2300*600 | 11350*2300*600 | 10850*2300*600 | 10350*2300*600 |
| 10 | Specification | Kerb Weight(kg) | 40000 | 40000 | 40000 | 39000,40000 | 39000,40000 | 39000,40000 |
| Payload Capacity(kg) | 7000，8500 | 8300 | 8100 | 7100,8100 | 6800,7900 | 6500，7700 | ||
| Wheel Base(mm) | 6680+1310+1310 6900+1310+1310 6800+1350+1350 | 6600+1310+1310 6500+1310+1310 | 6400+1310+1310 6300+1310+1310 | 5520+1310+1310 | 5320+1310+1310 5520+1310+1310 | 5220+1310+1310,5020+1310+1310 | ||
| Vehicle Shape Size(mm) | 12950×2500×3650,3850 | 12450*2500*3650,3850 | 119500*2500*3450,3650，3850 | 11500*25003450,3650,3850 | 11000*2500*3450，3650,3850 | 10500*2500*3450，3650,3850 | ||
| 11 | Optional equipment | The brand and model of the tire can be determined according to the availability. | ||||||
| 序號 | 車輛名稱 | 倉柵運輸半掛車 | 倉柵運輸半掛車 | 倉柵運輸半掛車 | 倉柵運輸半掛車 | 倉柵運輸半掛車 | 倉柵運輸半掛車 | |
| 項目 | ||||||||
| 1 | 產品型號 | MK9401CCY，MK9400CCYZ2 | MK9400CCYZ2 | MK9400CCYZ2 | MK9390CCY，MK9400CCYZ1 | MK9390CCY，MK9400CCYZ1 | MK9390CCY，MK9400CCYZ1 | |
| 2 | 半掛車輪胎 | 廠家 | 風神輪胎 | 風神輪胎 | 風神輪胎 | 風神輪胎 | 風神輪胎 | 風神輪胎 |
| 規格 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | ||
| 3 | 半掛車輪輞 | 廠家 | 正興輪輞 | 正興輪輞 | 正興輪輞 | 正興輪輞 | 正興輪輞 | 正興輪輞 |
| 4 | 半掛車車橋 | 廠家 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 | 蒙凱牌 |
| 每只橋承載重（噸） | 13T | 13T | 13T | 13T | 13T | 13T | ||
| 5 | 型號 | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | 三軸標準懸掛 | |
| 6 | 半掛車板簧 | 每片厚度 | 13/16 | 13/16 | 13/16 | 13/16 | 13/16 | 13/16 |
| 每片寬度 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| 數量（片） | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | ||
| 7 | 半掛車ABS系統 | 廠家 | 科巖 | 科巖 | 科巖 | 科巖 | 科巖 | 科巖 |
| 規格 | 4S/2M | 4S/2M | 4S/2M | 4S/2M | 4S/2M | 4S/2M | ||
| 8 | 半掛車牽引銷 | 型號 | 90#焊接式 | 90#焊接式 | 90#焊接式 | 90#焊接式 | 90#焊接式 | 90#焊接式 |
| 9 | 半掛車支腿 | 雙腿承重（噸） | 28T | 28T | 28T | 28T | 28T | 28T |
| 10 | 半掛車工字縱梁、邊梁 | 上下翼面寬 | 140 | 140 | 140 | 140 | 140 | 140 |
| 邊梁高度 | 140 | 140 | 140 | 140 | 140 | 140 | ||
| 縱梁高度 | 500 | 500 | 500 | 500 | 500 | 500 | ||
| 11 | 貨廂 | 貨廂內部尺寸 | 12860，12700*2300*600 | 12200*2300*600 | 11700*2300*600 | 11350*2300*600 | 10850*2300*600 | 10350*2300*600 |
| 12 | 配置 | 總質量 | 40000 | 40000 | 40000 | 39000,40000 | 39000,40000 | 39000,40000 |
| 整備質量 | 7000，8500 | 8300 | 8100 | 7100,8100 | 6800,7900 | 6500，7700 | ||
| 軸距 | 6680+1310+1310 6900+1310+1310 6800+1350+1350 | 6600+1310+1310 6500+1310+1310 | 6400+1310+1310 6300+1310+1310 | 5520+1310+1310 | 5320+1310+1310 5520+1310+1310 | 5220+1310+1310,5020+1310+1310 | ||
| 車輛外形尺寸 | 12950×2500×3650,3850 | 12450*2500*3650,3850 | 119500*2500*3450,3650，3850 | 11500*25003450,3650,3850 | 11000*2500*3450，3650,3850 | 10500*2500*3450，3650,3850 | ||
Model | MK9401CCY MK9400CCYZ2 | MK9400CCYZ2 | MK9400CCYZ2 | MK9390CCY MK9400CCYZ1 | MK9390CCY MK9400CCYZ1 | MK9390CCY MK9400CCYZ1 |
Vehicle Shape Size(mm) | 12950X2500X3850 | 12450X2500X3850 | 11950X2500X3850 | 11500X2500X3850 | 11000X2500X3850 | 10500X2500X3850 |
Inside Body Size(mm) | 12860X2300X600 | 12200X2300X600 | 11700X2300X600 | 11350X2300X600 | 10850X2300X600 | 10350X2300X600 |
Payload Capacity(kg) | 40000 | 40000 | 40000 | 39000，40000 | 39000，40000 | 39000，40000 |
Kerb Weight(kg) | 7000，8500 | 8300 | 8100 | 7100，8100 | 6800，7900 | 6500，7700 |
Wheel Base(mm) | 6680+1310+1310 6800+1350+1350 | 6600+1310+1310 6500+1310+1310 | 6400+1310+1310 6300+1310+1310 | 5520+1310+1310 | 5320+1310+1310 5520+1310+1310 | 5220+1310+1310 5020+1310+1310 |
Plate Spring Piece Number | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 |
Tyre Size | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 |
